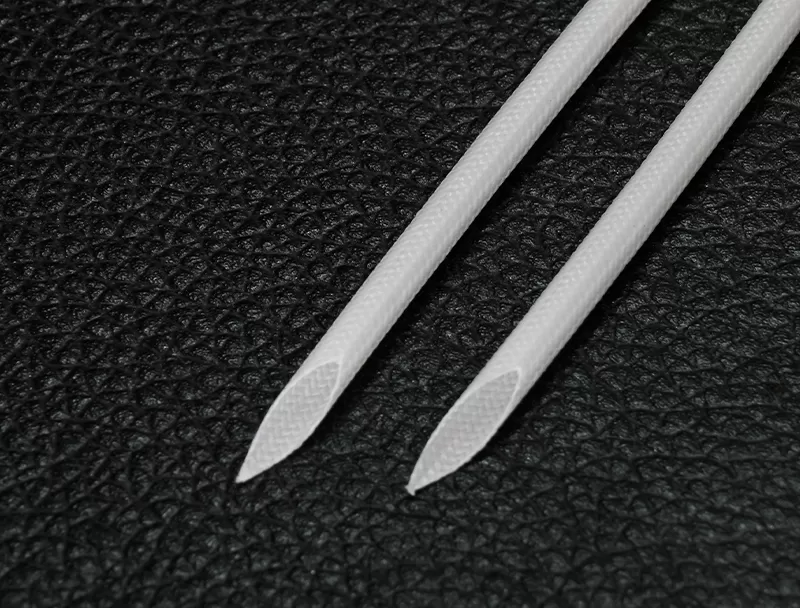

Inner rubber and outer fiber sleeve

[Product Name]: Inner rubber and outer fiber sleeve

[Product material]: glass fiber, silicone rubber

[Product Color]: White, Black (Other colors can be produced as required)

[Product specifications]: caliber 1.0--15MM.

[Product Packaging]: 100 meters/200 meters/roll.

[Rated temperature]: -60°C~+200°C.

[Breakdown voltage]: 2.5KV-10KV

[Flame retardant grade]: UL224 VW-1

[Product appearance]: the inner layer is silicone rubber, and the outer layer is glass fiber and silicone resin coating.

　　The inner rubber outer fiber sleeve (silicone glass fiber sleeve) is made by extruding silicone rubber into a tube, weaving it with glass fiber yarn, and then coating it with silicone resin for high-temperature treatment. The glass fiber sleeve itself has excellent electrical insulation, heat resistance, corrosion resistance, aging resistance and heat dissipation. Because of its excellent flexibility and elasticity, it can also maintain its flexibility and resistance to twists at -60 ℃, without reducing its electrical insulation. The product is widely used for insulation and voltage protection in household appliances, H-class&N-class motors, electronic instruments, electric heating equipment, various wire harnesses, wires, lighting fixtures, and other applications.

    The company's glass fiber sleeve series products have passed UL and SGS certification, and meet the environmental protection requirements of RoHS and REACH.
